Are you tired of trying to find reliable resources for repairing and restoring vintage Chevy trucks? If so, this 1947 truck assembly annual is just what you've been looking for. It doesn't just cover 1947 trucks, either. In fact, it's also a 1954 Chevy truck assembly manual, as well as a manual for all the years in-between. That makes it a one-of-a-kind resource that no vintage Chevy buff can live without.
This factory assembly manual provides Chevrolet engineering drawings used by their assembly line workers for the specific sections of the vehicle:
- Body
- Frame
- Suspension - front and rear
- Engine and Transmission
- Brakes
- Fuel & Exhaust System
- Steering
- Sheet Metal
- Electrical
- Bumbers, Radiator, Grille
NOTE: This book was never published by Chevrolet. It is a collection of engineering drawings with handwritten notes. The quality of the images are legible, but the original was never published for public consumption so some images are lighter than others. It is the best quality available from GM.
NOTE: This manual was originally designed by General Motors to clearly describe the final assembly instructions to plant personnel - using diagrams.
CHEVY MODELS COVERED:
- 1947 - 1953 Chevrolet Sedan Delivery Truck
- 1947 - 1954 Chevrolet Truck 3100 Truck
- 1947 - 1954 Chevrolet Truck 3600 Truck
- 1948 - 1953 Chevrolet Truck 3700 Truck
- 1947 - 1954 Chevrolet Truck 3800 Truck
In addition to covering a full eight years of Chevy pick-up truck production, this unique manual goes into extreme detail about all the truck specs. It features clear illustrations that outline every part of the truck from front to back and top to bottom. It also has exploded views for all those small bits and pieces, along with part numbers, part number cross-referencing, torque, revisions and more. This Chevy truck factory assembly manual will finally make it possible to get your vintage Chevy pick-up in the condition you want. This is a great resource to use alongside a shop manual for additional clarity on how all of the puzzle pieces fit together. These post-war trucks are stylish and solid vehicles. It's easy to see why they are so popular. When it's time to get to work on your classic hauler, why not arm yourself with a guide containing the resources to show you the pieces and fasteners involved and how they relate?
Subject: Chevrolet Pickup Factory Assembly Manual - 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954. | OEM Part Number: 3707902
- Section 0 - Electrical & Instrument Instruction Index / Diagrams
- Section 0 - Chassis Instruction Index / Diagrams
- Section 1 - Cab & Sheet Metal Welding Instruction Index / Diagrams
- Section 2 - Frame Assembly Instruction Index / Diagrams
- Section 3 - Front Suspension Assembly Instruction Diagrams
- Section 4 - Rear Suspension Assembly Instruction Diagrams
- Section 5 - Brake Assembly Instruction Diagrams
- Section 6 - Engine Assembly Instruction Diagrams
- Section 7 - Transmission Assembly Instruction Diagrams
- Section 8 - Fuel Tank Assembly Instruction Diagrams
- Section 9 - Steering Assembly Instruction Diagrams
- Section 10 - Wheel / Tire Carrier Assembly Instruction Diagrams
- Section 11 - Sheet Metal, Grille, Fender, & Radiator Assembly Instruction Diagrams
- Section 12 - Main Wire / Electrical and Instrument Assembly Diagrams
- Section 13 - Radiator, Grille Mounting Assembly Instruction Diagrams
- Section 14 - Front Bumper, Door, Hood, Windshield Assembly Instruction Diagrams

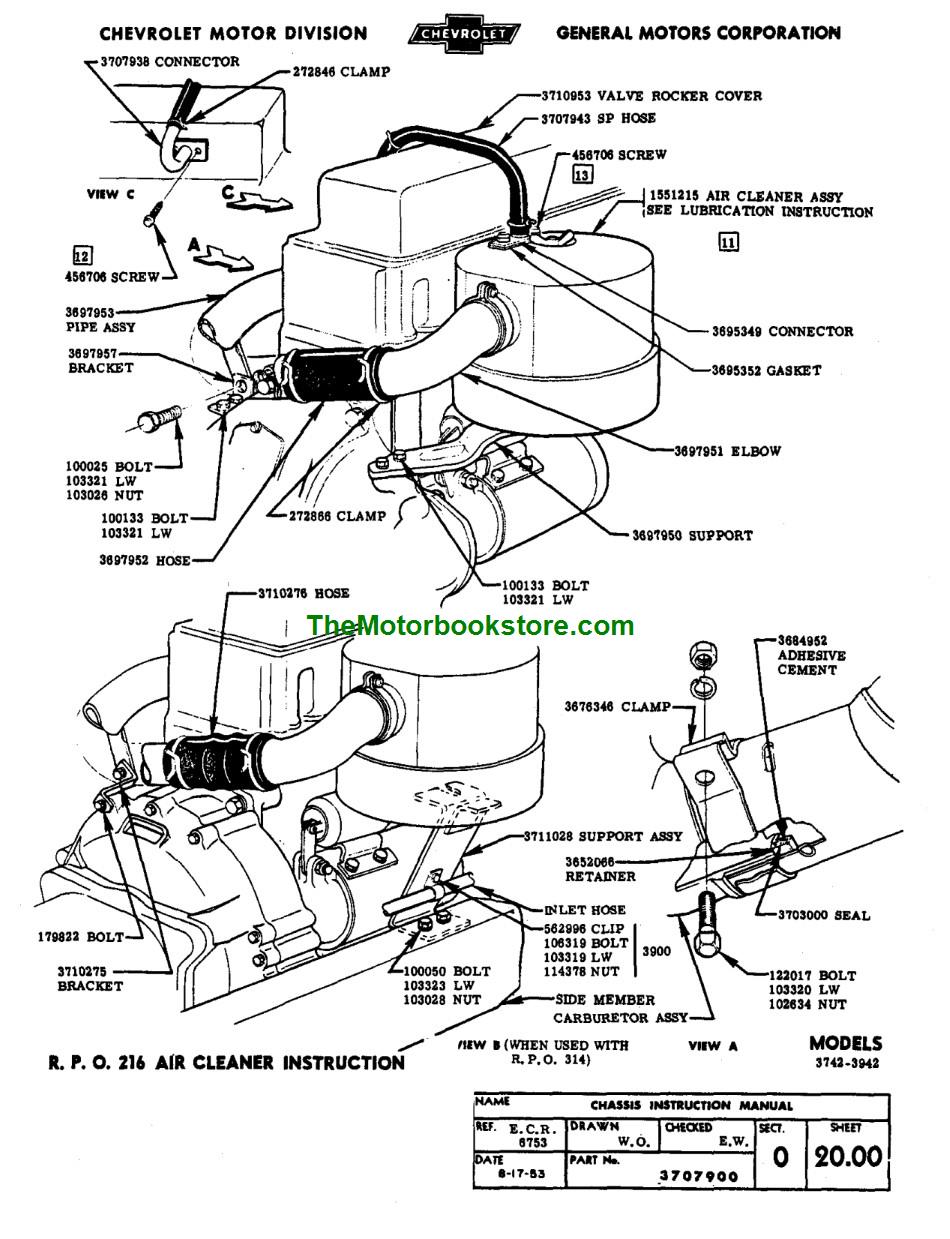

Below: 1947-1954 Chevrolet Truck Factory Assembly Manual Sample Page - Air Cleaner
