This 1971 Ford Pinto Shop Manual is a high-quality, PRINT, reproduction of the original equipment manufacturer (OEM) shop manual, which was written and first published by Ford Motor Company.
It's always exciting to see a new car model join the line-up. In 1971, Ford had such a car in the Pinto. The 1970s are remembered as a time of Detroit cars being built to the size of dinosaurs. With the Pinto, Ford bucked that trend. It was a subcompact, with a solid engine and sporty styling.
When it comes time for service and maintenance for your Pinto, you'll want to turn to the guide which was prepared by the experts at Ford (initially for use by their dealership mechanics). This freshly-printed version of that same service manual contains 436 pages! It includes all of the information from the original, but yours will be clean and new.
Inside, you'll find wonderful, step by step text instructions to walk you through all of the service and repair procedures. In addition, this 1971 Ford Pinto shop manual contains a huge number and variety of visual tools to assist you throughout the projects. There are black and white photographs, illustrations, tables, charts, cut-away diagrams, exploded view diagrams, circuit diagrams and more.
This is a comprehensive manual. It covers such areas as: Identification codes, wheels and tires, brakes, steering, suspension, drive axles and drive shafts, clutch and manual transmission, automatic transmission, gasoline engines, ignition system, fuel system, exhaust system, cooling system, starting system, charging system, lighting system, instruments, clusters and controls, main wiring harness and circuit protection, auxiliary equipment, ventilating, heating and air conditioning, seats, window glass and mechanisms, stationary window glass, doors, hood, luggage compartment door, interior trim, tops and exterior finishes, body shell, exterior trim, frame and underbody, maintenance and lubrication.
FORD MODELS COVERED:
- 1971 Ford Pinto
This factory-written shop manual is perfect for service, repairs, restoration and rebuild projects. Clear illustrations and photos show exploded views, as well as component details, plus specifications on engine data, engine torque, carburetion and more.
Subject: 1971 Ford Pinto Shop Manual - Includes Detailed Procedures and Instructions. | OEM Part Number: FORM 7986-71
- Identification Codes
- Wheels and Tires
- Brakes
- Front Axle
- Steering
- Suspension
- Driving Axels and Drive Shafts
- Clutch and Manual Transmission
- Automatic Transmission
- Gasoline Engines
- Ignition System
- Fuel System-Gasoline
- Exhaust System
- Starting System
- Charging System
- Lighting System
- Instruments, Cluusters and Controls
- Main Wiring Harness And Circuit Protection
- Auxiliary Equipment
- Ventilating, Heating and Air Conditioning
- Seats
- Window Glass And Mechanisms
- Stationary Window Glass
- Doors, Hood, Luggage Compartment Door
- Interior Trim
- Tops and Exterior Finishes
- Body Shell, Exterior Trim, Frame And Underbody
- Maintenance And Lubrication

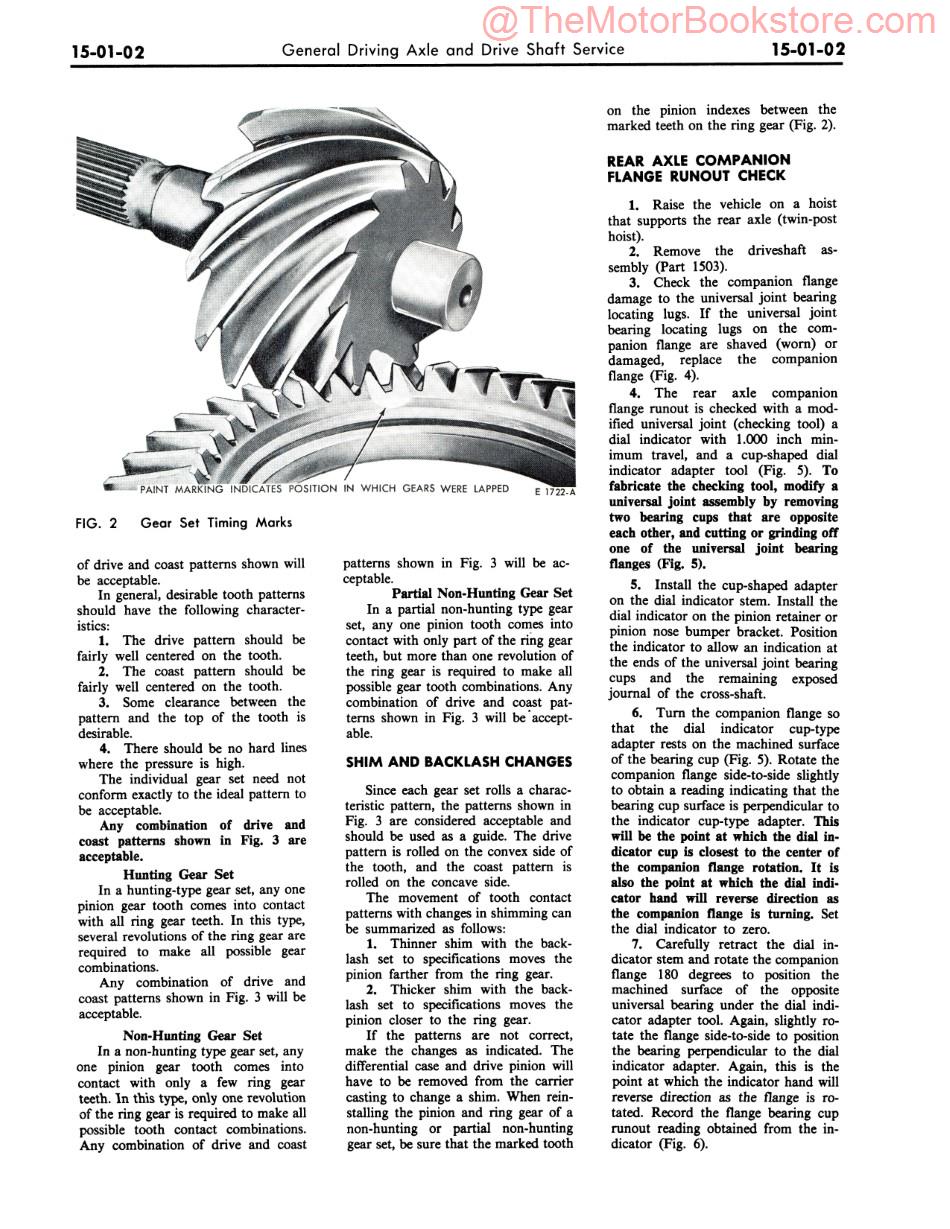

Below:1971 Ford Pinto Shop Manual Sample Page - Driving Axle
