This 1974 Ford / Lincoln / Mercury Shop Manual - 5 Volumes is a high quality, PRINT reproduction of the shop manual which was written and first published by the experts at the original equipment manufacturer (OEM), Ford Motor Company, for use by their dealership mechanics. Now, this handy, comprehensive resource can be yours!
Containing a staggering 1,892 pages, this is the definitive guide for service and repair procedures for your 1974 Ford, Lincoln or Mercury. The five volumes have been conveniently packaged into two books. They are excellent, freshly-printed reproductions which retain all of the content from the original factory source. You'll be all set to tackle the jobs from small to large whether you're looking to restore, rebuild or repair your classic Ford.
MODELS COVERED:
- 1974 Ford Country Sedan
- 1974 Ford Country Squire
- 1974 Ford Custom 500
- 1974 Ford Galaxie 500
- 1974 Ford Gran Torino
- 1974 Ford Gran Torino Brougham
- 1974 Ford Gran Torino Elite
- 1974 Ford Gran Torino Sport
- 1974 Ford Gran Torino Squire
- 1974 Ford LTD
- 1974 Ford LTD Brougham
- 1974 Ford Maverick
- 1974 Ford Mustang II 2+2
- 1974 Ford Mustang II
- 1974 Ford Mustang II Ghia
- 1974 Ford Mustang II Mach 1
- 1974 Ford Pinto
- 1974 Ford Ranch Wagon
- 1974 Ford Ranchero 500 Truck
- 1974 Ford Ranchero GT Truck
- 1974 Ford Ranchero Squire Truck
- 1974 Ford Thunderbird
- 1974 Ford Torino
- 1974 Lincoln Continental
- 1974 Lincoln Mark IV
- 1974 Mercury Colony Park
- 1974 Mercury Comet
- 1974 Mercury Cougar XR-7
- 1974 Mercury Marquis
- 1974 Mercury Marquis Brougham
- 1974 Mercury Montego
- 1974 Mercury Montego MX Brougham
- 1974 Mercury Montego MX
- 1974 Mercury Montego Villager
- 1974 Mercury Monterey
- 1974 Mercury Monterey Custom
You'll love the massive number and variety of quality visual aids which have been included in this guide to accompany the well-written text procedures. There are tables, illustrations, cut-away views, black and white photographs, exploded-views, charts and more to make sure you have an excellent understanding of all of the steps involved for projects from small to large.
Please take a moment to scroll and look at the Table of Contents tab on this webpage in order to see just how extensively these models have been covered in this five-manual set. While you're at it, please also check out the sample pages we've included. You'll notice how well the multiple visual aids match up with the numbered steps regarding the example involving the sliding caliper disc brakes. Checking out the fuses and circuit breakers example offers you a good look at the quality illustrations which can be found throughout this helpful guide.
Did you know that incorrect fuel pump pressure and low volume are the two most likely fuel-pump related troubles that will affect your engine performance? You would if you had this set of repair manuals and were reading about testing on page 24-30-2. It would explain to you that the low pressure causes a lean mixture and fuel starvation at high speeds. It would also tell you that excessive pressure causes high fuel consumption and carburetor flooding. The book then provides step-by-step procedures for running a pressure test.
One of the big news items at Ford in 1974 was the release of the Mustang II. It was one of Detroit's early efforts to downsize models. There's no doubt that the 1970s was a difficult decade for American automakers for a whole host of reasons, and the Mustang II has earned mixed reviews over the years. Regardless of those reviews, it's worth noting that the Mustang II won Motor Trend magazine's "Car of the Year" award when it debuted. Whether you're planning on wrenching on a '74 Mustang II, or any of the multitude of great models which are covered in this hefty service manual, you're going to want the factory-specifications and instructions to do the jobs right. That's just what you'll get with this reprinted 1974 Ford/Lincoln/Mercury shop manual.
This factory written shop manual is perfect for service, repairs, restoration, and rebuild projects. Clear illustrations and photos show exploded views, as well as component details, plus specifications one engine, data, engine torque, carburetion and more.
Subject: 1974 Ford / Lincoln / Mercury Shop Manual - 5 Volumes - Includes Detailed Procedures and Instructions. | OEM Part Number: 365-126-74A,B,C,D,E

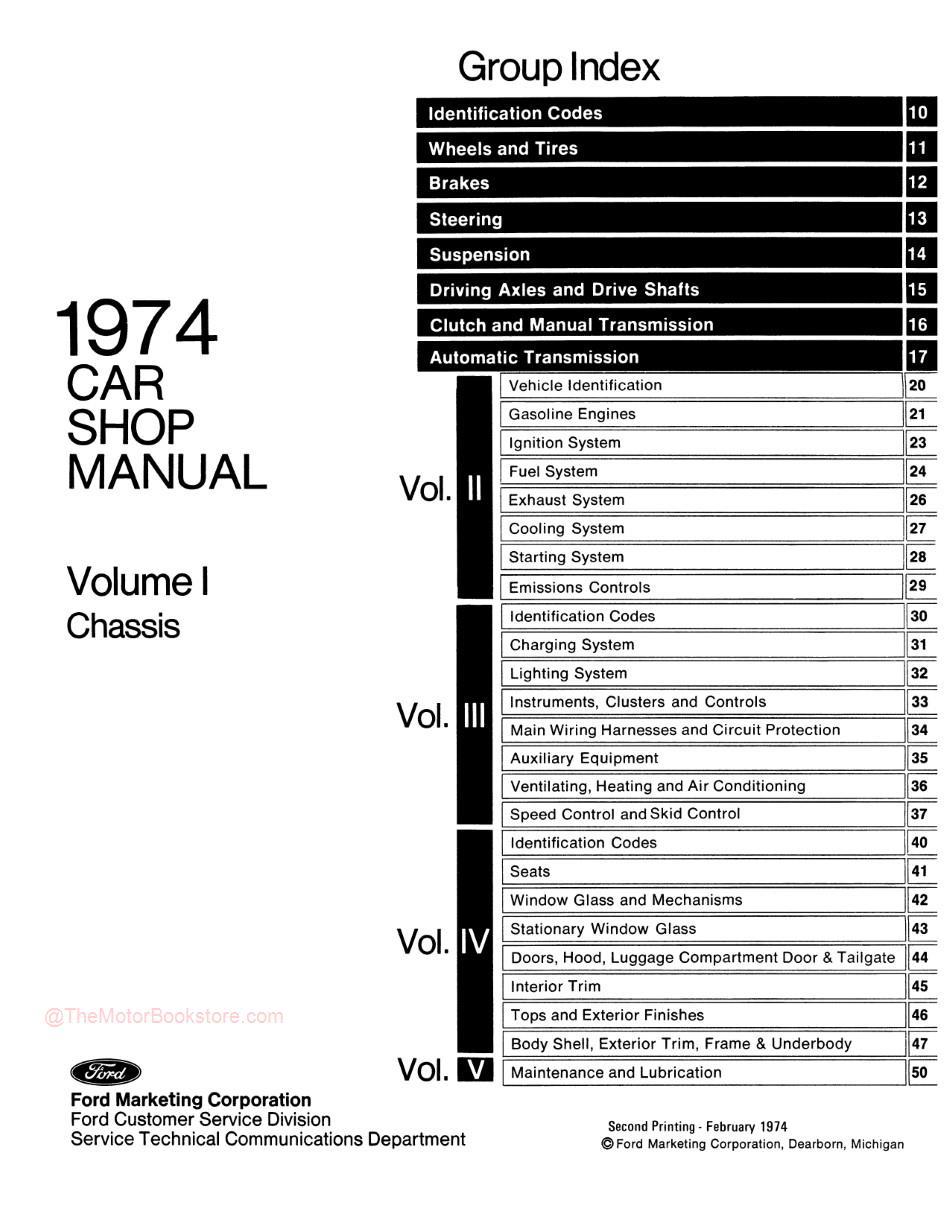

- Chassis - Volume 1
- Identification Codes
- Wheels and Tires
- Brakes
- Steering
- Suspension
- Driving Axles and Drive Shafts
- Clutch and Manual Transmission
- Automatic Transmissions

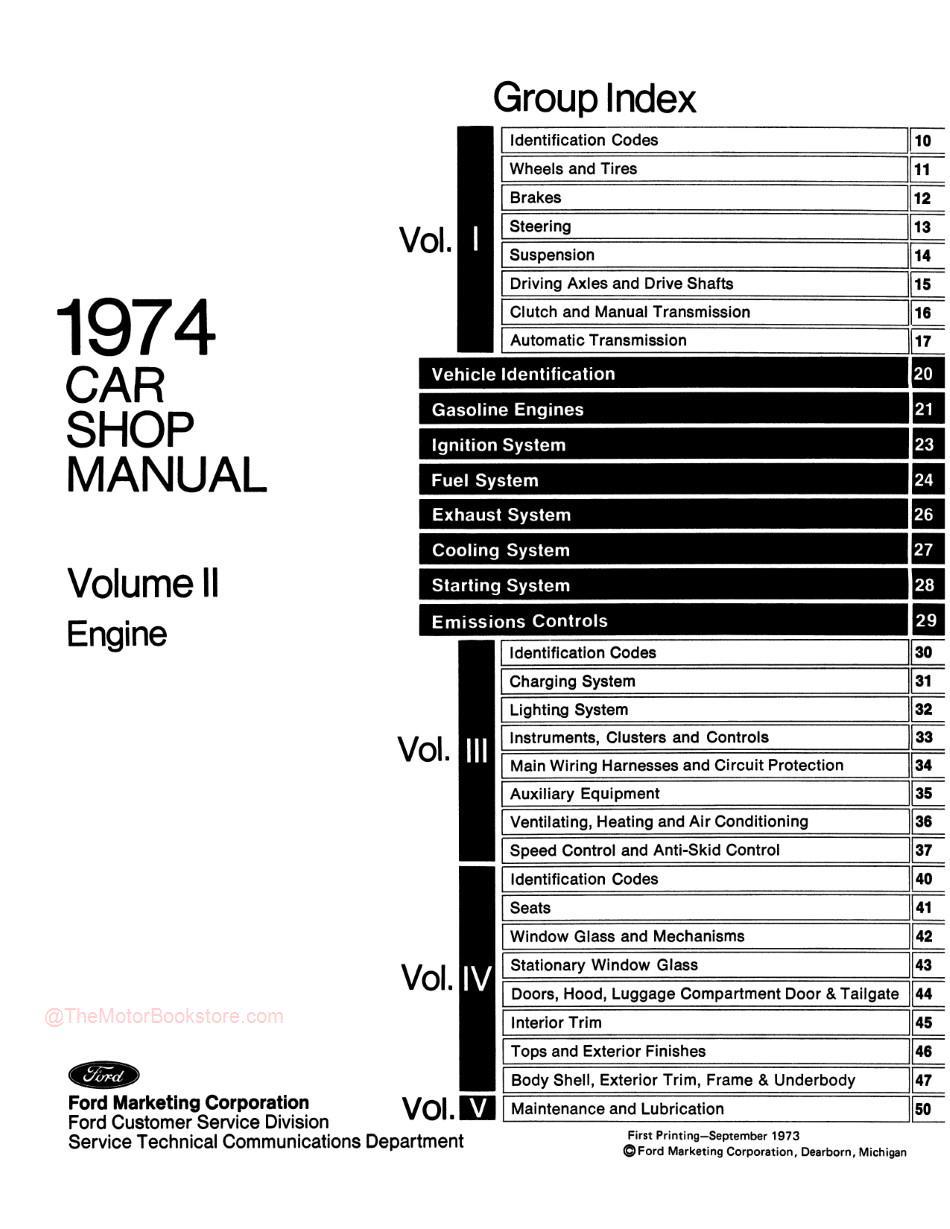

- Engine - Volume 2
- Vehicle Identification
- Gasoline Engines
- Ignition System
- Fuel System
- Exhaust System
- Cooling System
- Starting System
- Emissions Controls
- Electrical - Volume 3
- Identification Codes
- Charging System
- Lighting System
- Instruments, Clusters and Controls
- Main Wiring Harnesses and Circuit Protection
- Auxiliary Equipment
- Ventilating, Heating and Air Conditioning
- Speed Control, Anti-Skid Control

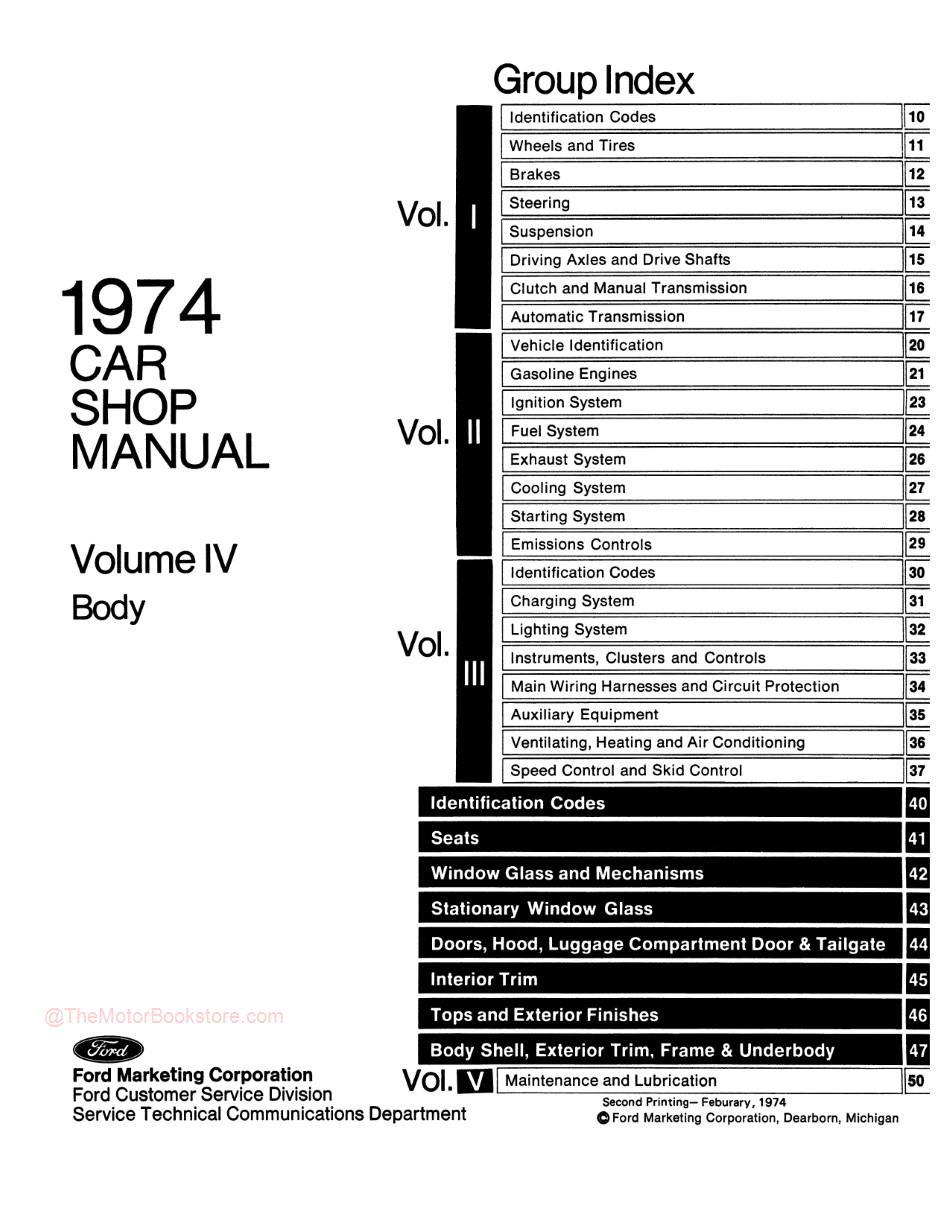

- Body - Volume 4
- Identification Codes
- Seats
- Window Glass and Mechanisms
- Stationary Window Glass
- Doors, Hoods, Luggage Compartment Door & Tailgate
- Interior Trim
- Tops and Exterior Finishes
- Body Shell, Exterior Trim, Frame and Underbody

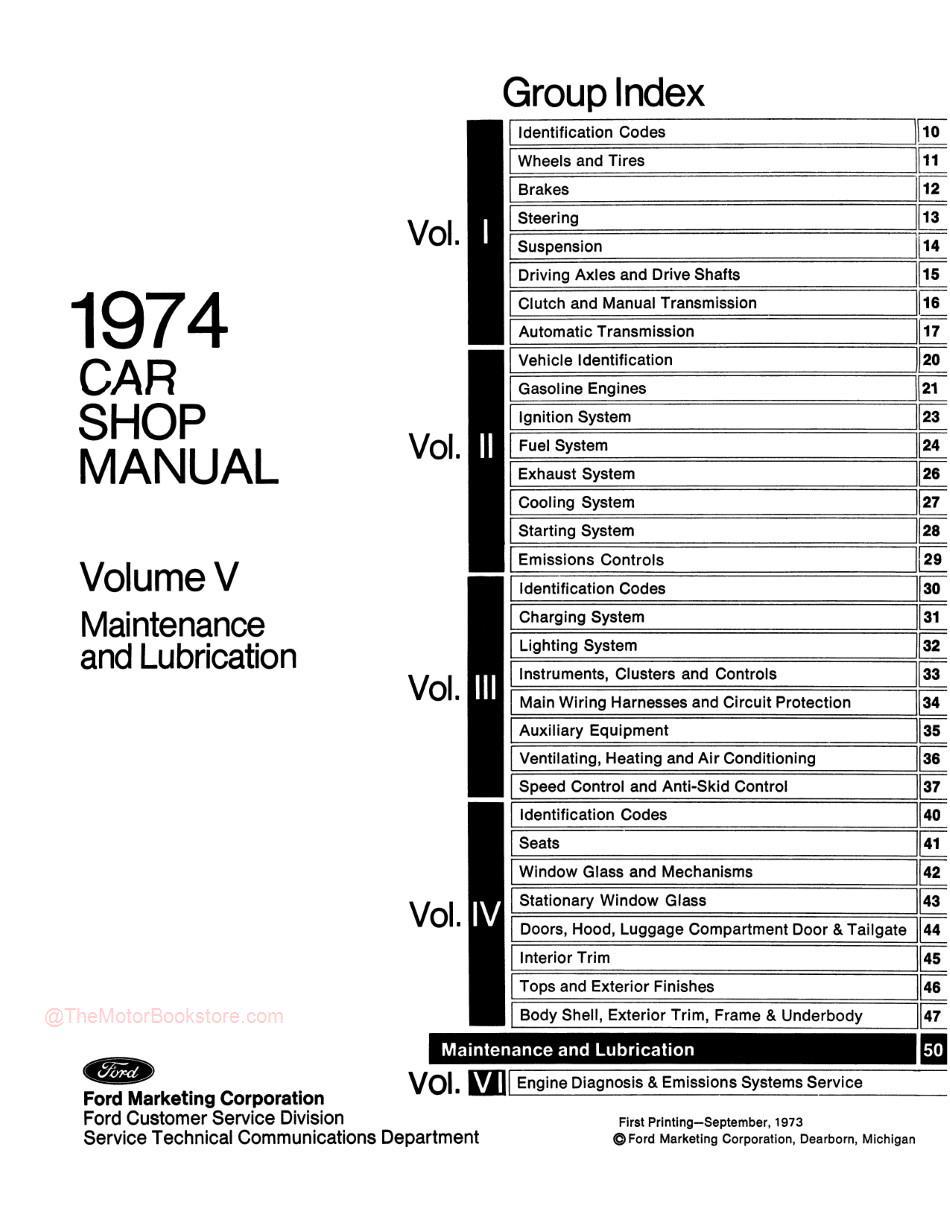

- Maintenance and Lubrication - Volume 5
Below:1974 Ford / Lincoln / Mercury Shop Manual Sample Page - Brake Caliper Assembly
Sample Page:
Below:1974 Ford / Lincoln / Mercury Shop Manual Sample Page - Circuit Breakers
