1974 Pontiac Shop Manual

This 1974 Pontiac Shop Manual is a high-quality, PRINT, reproduction of the shop manual which was written and first published by the experts at the original equipment manufacturer (OEM), Pontiac Motor Division, for use by their dealership mechanics. Now, this superior resource can be yours!

NOTE: We have proudly included fold-out 11" x 26" COLOR wiring diagrams. Not many (if any) reproduction automotive manuals include fold-out materials at all, much less in color! This is the one to have.

MODELS COVERED:

• 1974 Pontiac Bonneville
• 1974 Pontiac Catalina
• 1974 Pontiac Catalina Safari
• 1974 Pontiac Firebird
• 1974 Pontiac Firebird Esprit
• 1974 Pontiac Firebird Formula
• 1974 Pontiac Firebird Trans Am
• 1974 Pontiac Grand Am
• 1974 Pontiac Grand Prix
• 1974 Pontiac Grand Safari
• 1974 Pontiac Grandville
• 1974 Pontiac LeMans
• 1974 Pontiac LeMans Luxury
• 1974 Pontiac LeMans Safari
• 1974 Pontiac LeMans Safari Luxury
• 1974 Pontiac LeMans Sport
• 1974 Pontiac Ventura
• 1974 Pontiac Ventura Custom
• 1974 Pontiac Ventura GTO

Featuring 1,136 pages, this massive service manual has been conveniently divided into two volumes, yet retains all of the material from the original source. You'll find loads of easy-to-follow text directions and factory specifications from the experts, which have been thoughtfully paired with a huge number and variety of excellent visual aids. There are illustrations, tables, charts, black and white photographs, wiring schematics, cut-away views, exploded views, and more to provide you with unrivaled clarity and assist you with projects of all sizes from start to finish. Please scroll down to view a couple of sample pages in order to see just how well the outstanding visual tools complement all of the well-written text instructions.

This great guide covers all areas of these fine cars. If you're looking to spin some sockets on a 250 cubic-inch in-line six-cylinder, this has you covered. If it's a 350 cubic-inch, 400 cubic-inch or even the big bad 455 cubic-inch V8 (including the famous Super Duty!), you'll also find everything you need.

Did you know that the Muncie four-speed transmission was an optional heavy-duty, floor shift, manual transmission used on 400 and 455 cubic-inch engines in the "A" and "F" Series? You would if you owned this manual. In that section you'll also find trouble diagnosis, general description, on car adjustments, minor repairs, major repairs, procedures for removal, disassembly, cleaning, inspection, assembly and installation as well as specifications. It will shift your knowledge level, that's for sure.

Pontiac offered a nice, diverse lineup in 1974. They kept their sporty nature even in the face of difficult times for the industry. The muscle car era was being attacked on all sides, but Pontiac stayed at their post. They even managed a little Hollywood fame. A '74 Firebird starred alongside James Garner on the popular new television series The Rockford Files. Make your Pontiac a star again with the wonderful information in this handy guide.

NOTE: This is the SHOP manual. For BODY information, please see our: 1974 Fisher Body Service Manual, which can be found by clicking here...1974 Fisher Body Service Manual.

This factory-written shop manual is perfect for service, repairs, restoration, and rebuild projects. Clear illustrations and photos show exploded views, as well as component details, plus specifications, engine repair details, fuel systems and more.

Sample Page:

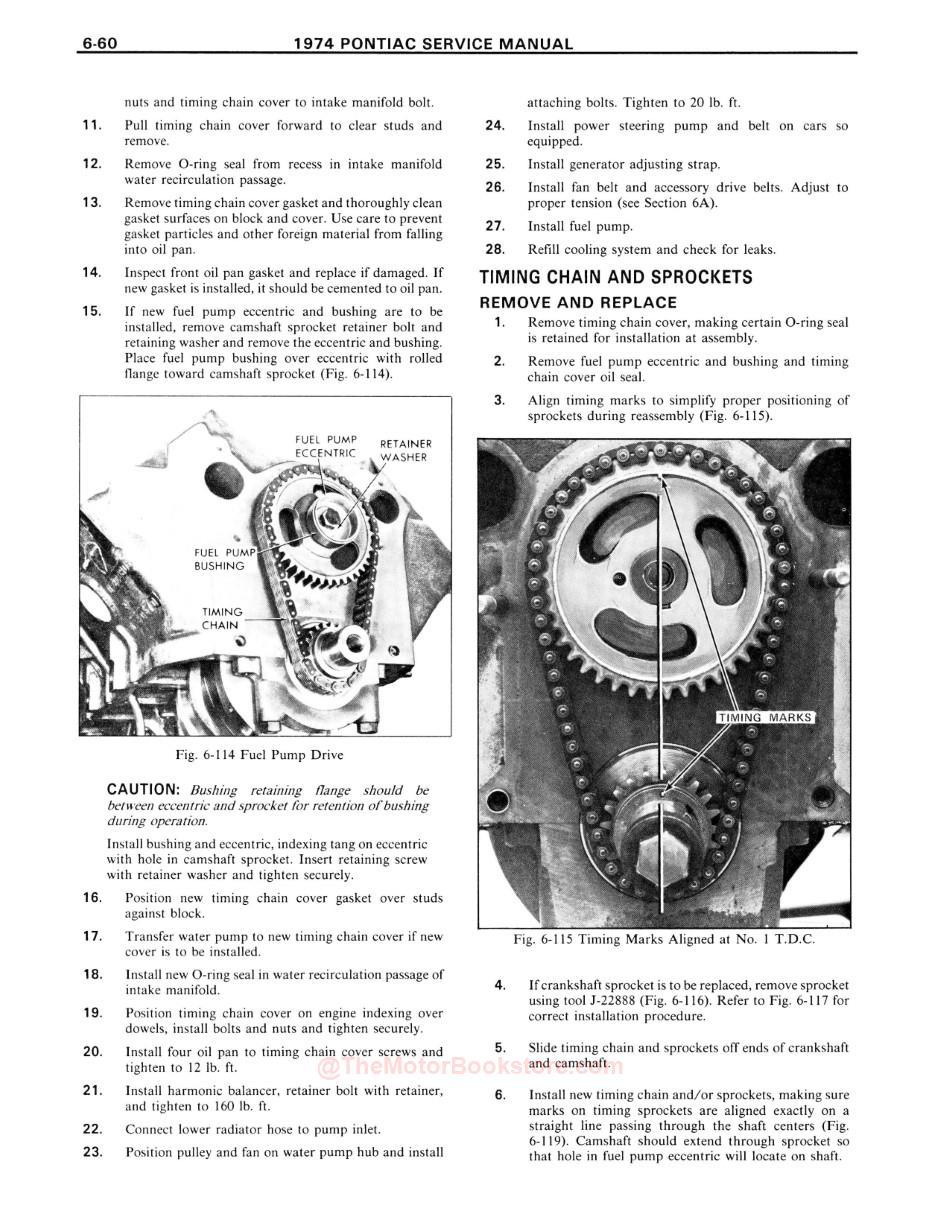

Below:1974 Pontiac Shop ManualSample Page - Timing Chain

Sample Page:

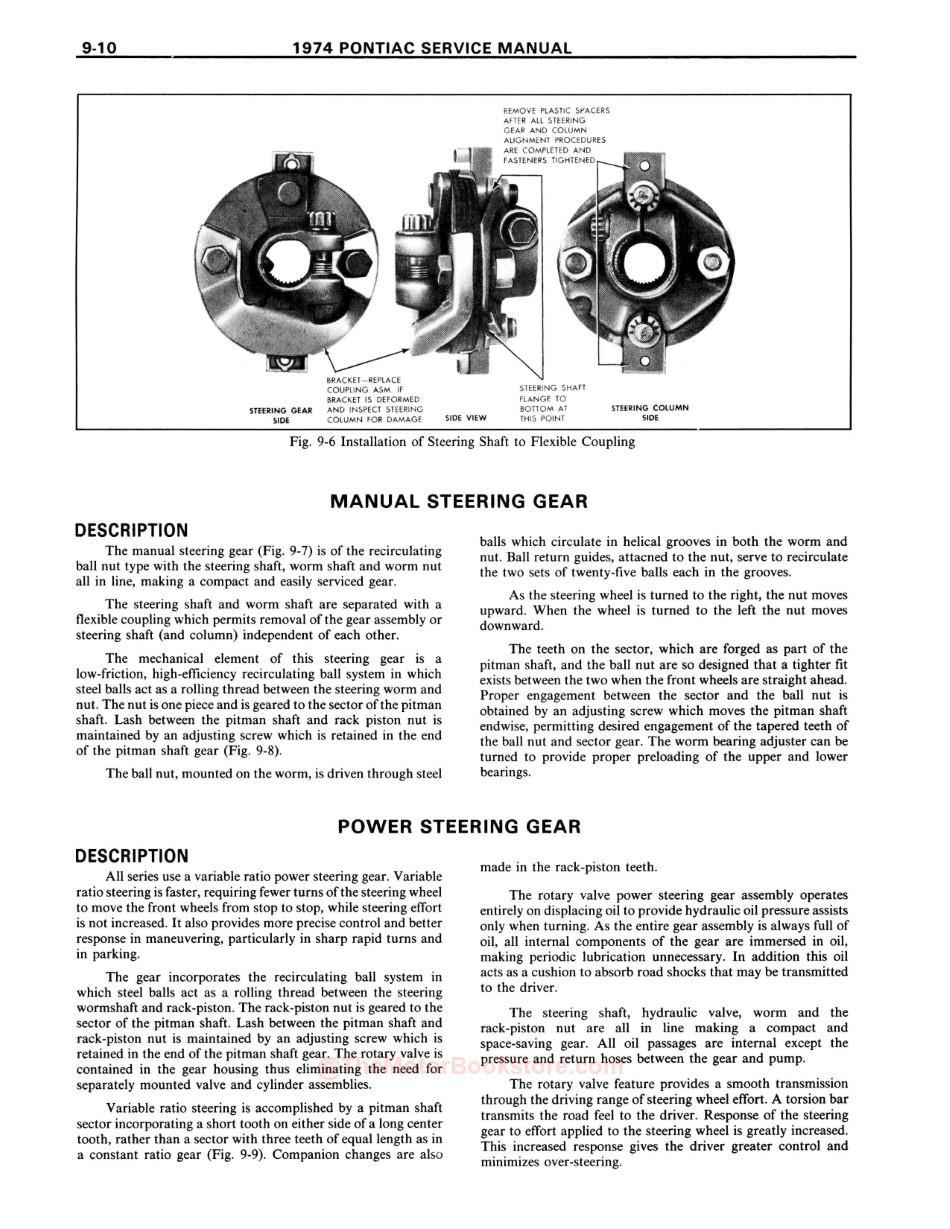

Below:1974 Pontiac Shop ManualSample Page - Steering Gears
