This 1986 Ford Mustang Capri Electrical Vacuum Troubleshooting Manual - COLOR by Detroit Iron® is a high-quality, licensed, PRINT reproduction of the shop manual written and first published by the experts at the original equipment manufacturer (OEM), Ford Motor Company, for use by their dealership mechanics. There's no doubt that by 1986, cars had become plenty complex. If that intimidating mass of wires and hoses under the hood of your pony car has you nervous, relax! This guide will transform how you see it (as a bird's nest) into a collection of well-engineered systems. Without it, that bird's nest just might wind-up belonging to a wild goose you'll be chasing!
This electrical and vacuum troubleshooting manual, often referred to as an EVTM, shows the vacuum and electrical circuits pertaining to the '86 Ford Mustang and Mercury Capri. They're presented in straightforward fashion for ease of troubleshooting. Each circuit is described along with troubleshooting hints. You'll also find charts marking the component locations and connectors. Everything is complemented by a huge number and variety of beautiful color visual aids. This layout results in unmatched clarity.
Containing over 150 pages of factory-correct procedures and specifications, you'll be able to take on diagnostic and troubleshooting issues with efficiency and accurate results using this outstanding guide. It's the superior resource for your vintage vehicle.
From the excellent wiring diagrams included in this EVTM, you'll learn such information as when and how the circuit is powered, the current path to the component(s) and how each circuit is grounded.
NOTE: This manual is a SUPPLEMENT. We strongly recommend purchasing the MAIN manual in addition to this great EVTM. What can you expect from the main manual? The 1986 Ford Car Shop Manual SET (Vol B, D & F) contains a staggering 2,690 pages of details for your classic FOMOCO machine. Wait! For even more information, please also check out the 1986 Ford Car / Truck Engine & Emissions Diagnosis Shop Manual. It houses 1,144 pages of detailed troubleshooting material. For the most complete coverage, you'll want to have all three of these handy guides in your automotive library.
MODELS COVERED:
- 1986 Ford Mustang GT
- 1986 Ford Mustang LX
- 1986 Ford Mustang SVO
- 1986 Mercury Capri 5.0
- 1986 Mercury Capri GS

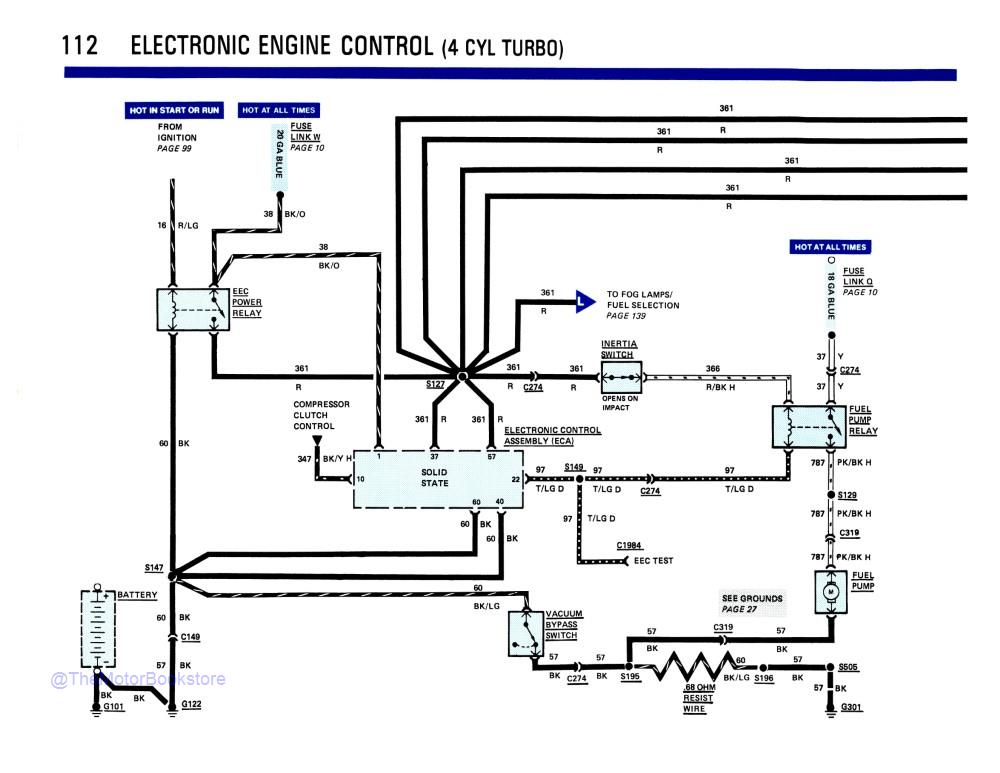

Here at The Motor Bookstore™, we definitely know car manuals. Since we began in 1997, we've remained dedicated to offering the finest products available to the do-it-yourself (DIY) mechanic crowd that we love. That commitment is why we've chosen to carry THIS version of the 1986 Ford Mustang Capri Electrical Vacuum Troubleshooting Manual from publisher Detroit Iron®. They retain ALL of the content from the original source. Detroit Iron® also utilizes industry-leading digital technology to recreate this literature to the highest level. They even use first-class materials (such as thick paper) for construction. This results in durable manuals delivering dark text, clean backgrounds and sharp visual aids. Please take a look at the sample page we've included to see one of the magnificent circuit diagrams. In this case, it's from the Electronic Engine Control (4 cyl turbo).
This factory-written shop manual is perfect for service, repairs, restoration, and rebuild projects. Clear illustrations and photos show exploded views, as well as component details, plus specifications, engine repair details, fuel systems and more.
Subject: 1986 Ford Mustang Capri Electrical Vacuum Troubleshooting Manual - Includes Detailed Procedures and Instructions. Mercury | ISBN-10: 01791418201 | ISBN-13: 9781791418205 | OEM Part Number: 0336-503-86
Sample Page:Below:1986 Ford Mustang Capri Electrical Vacuum Troubleshooting Manual - Sample Page 1
