1996 Ford Econoline Club Wagon Electrical and Vacuum Troubleshooting Manual

This 1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual by Detroit Iron® is a high-quality, licensed, PRINT reproduction of the shop manual written and first published by the experts at the original equipment manufacturer (OEM), Ford Motor Company, for use by their dealership mechanics.  Known officially as an electrical and vacuum troubleshooting manual, this guide is often referred to as an evtm.  It's purpose is to present the vacuum and electrical systems in a clear and concise manner in order to make your troubleshooting tasks easier.  Components that work together are shown together.  All of the electrical components used in a specific system are shown on one diagram.

You'll find that the schematic pages contain component location references to full-view illustrations and descriptions of the components regarding their function.  There are diagnostic testing procedures.  You'll also discover connector end views.  For connectors with five or more cavities, a circuit function chart is also provided.  Important safety instructions are included throughout marked as NOTES, CAUTIONS and WARNINGS.  There are handy component location views.  Circuit voltages have been included on schematic pages.

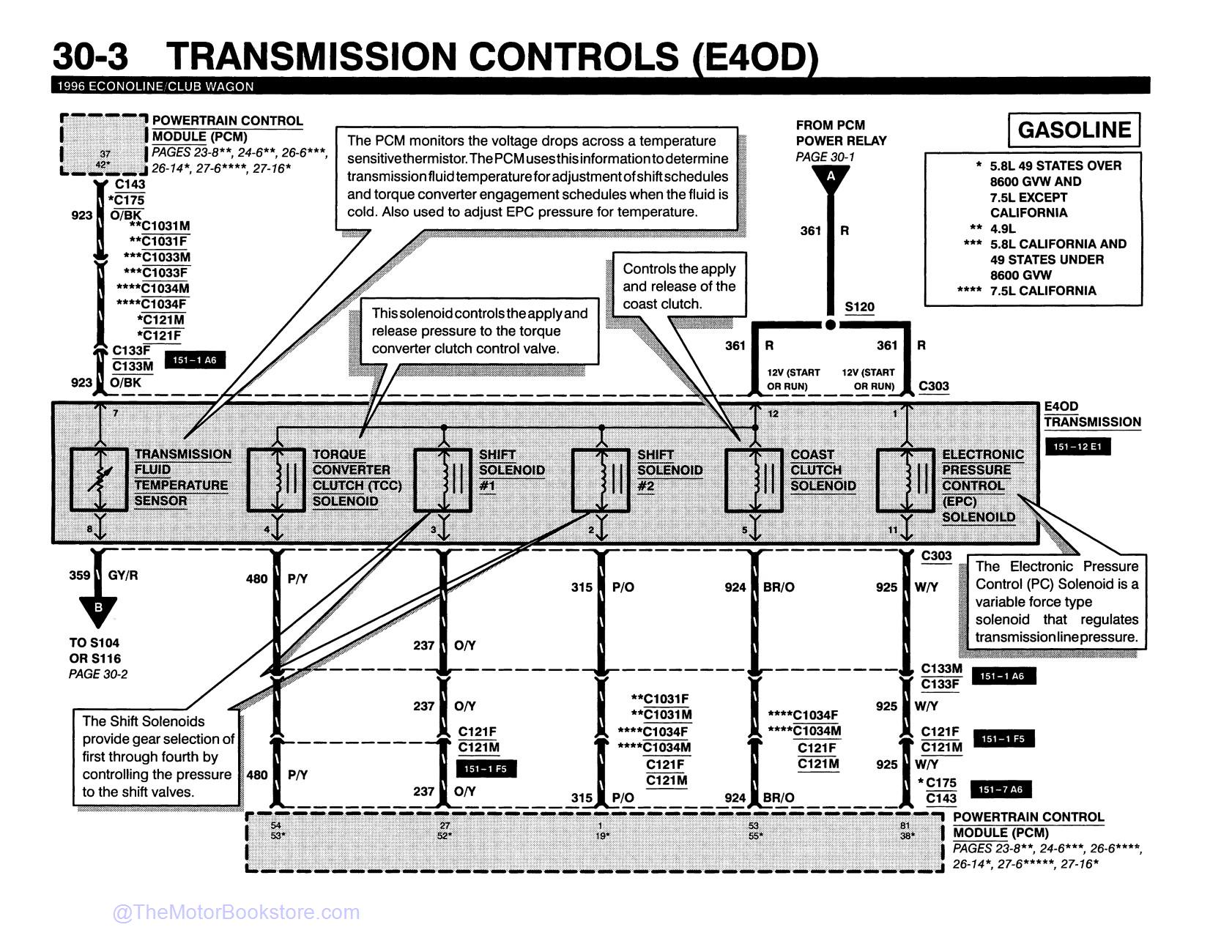

The publisher, Detroit Iron®, has retained ALL of the OEM content.  They also use thick paper and industry-leading print technology to deliver manuals featuring clean backgrounds, dark text and sharp visual aids.  Please check out the sample page we've included to see for yourself.  In this case, it's a diagram of the transmission controls (E4OD).  This type of beautiful visual aid is found throughout this handy guide.

NOTE:  This is a specialized manual for electrical and vacuum troubleshooting.  For the MAIN manual, please see the 1996 Ford Econoline Service Manual.  For powertrain and emissions diagnostic information, please see the 1996 Ford OBD-II Powertrain Control Emissions Diagnosis Service Manual

MODELS COVERED:

  • 1996 Ford E-150 Econoline Van
  • 1996 Ford E-150 Econoline Club Wagon Chateau Van
  • 1996 Ford E-150 Econoline Club Wagon Custom Van
  • 1996 Ford E-150 Econoline Club Wagon XLT Van
  • 1996 Ford E-150 Econoline XL Van
  • 1996 Ford E-250 Econoline Van
  • 1996 Ford E-250 Econoline XL Van
  • 1996 Ford E-350 Econoline Van
  • 1996 Ford E-350 Econoline Club Wagon Chateau HD Van
  • 1996 Ford E-350 Econoline Club Wagon Chateau Van
  • 1996 Ford E-350 Econoline Club Wagon Custom Van
  • 1996 Ford E-350 Econoline Club Wagon XL HD Van
  • 1996 Ford E-350 Econoline Club Wagon XLT HD Van
  • 1996 Ford E-350 Econoline Club Wagon XLT Van
  • 1996 Ford E-350 Econoline XL Van

This factory written 1996 Ford Econoline electrical and vacuum troubleshooting shop manual (evtm) is perfect for service, repairs, restoration and rebuild projects.  Clear illustrations and outstanding visual tools show component details, specifications, repair details and more.


Subject: 1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual - Includes Detailed Procedures and Instructions. | ISBN-10: 01791419771 | ISBN-13: 9781791419776 | OEM Part Number: FCS-12128-96


1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual - Table of Contents 1
1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual  - Table of Contents 1
1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual - Table of Contents 2
1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual  - Table of Contents 2

Sample Page:
Below:1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual - Sample Page
1996 Ford Econoline Electrical and Vacuum Troubleshooting Manual - Sample Page

Specifications

  • Publisher: Detroit Iron
  • Author: Ford Motor Company
  • Pages: 392 - Hundreds of b&w illustrations
  • Binding: Paperback - 11 x 8.5 x 0.74 inches
  • ISBN: 978-1-7914-1977-6
  • Years: 1996
